What are the types of antistatic yarns？

Conductive Fiber-Blended Yarns

Conductive fiber-blended yarns are produced by incorporating a small percentage of inherently conductive fibers—typically 2–5% by weight—into a base fiber such as polyester or nylon. The conductive component forms a continuous network throughout the yarn cross-section, allowing charge to dissipate along the fiber length before buildup occurs.

How the conductive network forms

When conductive fibers are distributed at sufficient density, they create percolation pathways. Electrons move along these paths rather than accumulating on the surface. A well-designed blend typically achieves a surface resistivity in the range of 10⁶ to 10⁹ Ω/sq, which meets ESD (electrostatic discharge) protection requirements for most industrial environments.

Typical conductive fiber materials used

• Carbon-filled polyester or nylon fibers (most common, cost-effective)
• Stainless steel micro-fibers (very high conductivity, used in specialized workwear)
• Silver-coated fibers (antimicrobial benefit combined with conductivity)
• Copper-coated fibers (excellent conductivity but susceptible to oxidation)



This yarn type is widely used in cleanroom garments and protective workwear because the antistatic property is durable through repeated laundering—often rated for 50–100 industrial wash cycles without significant performance degradation.

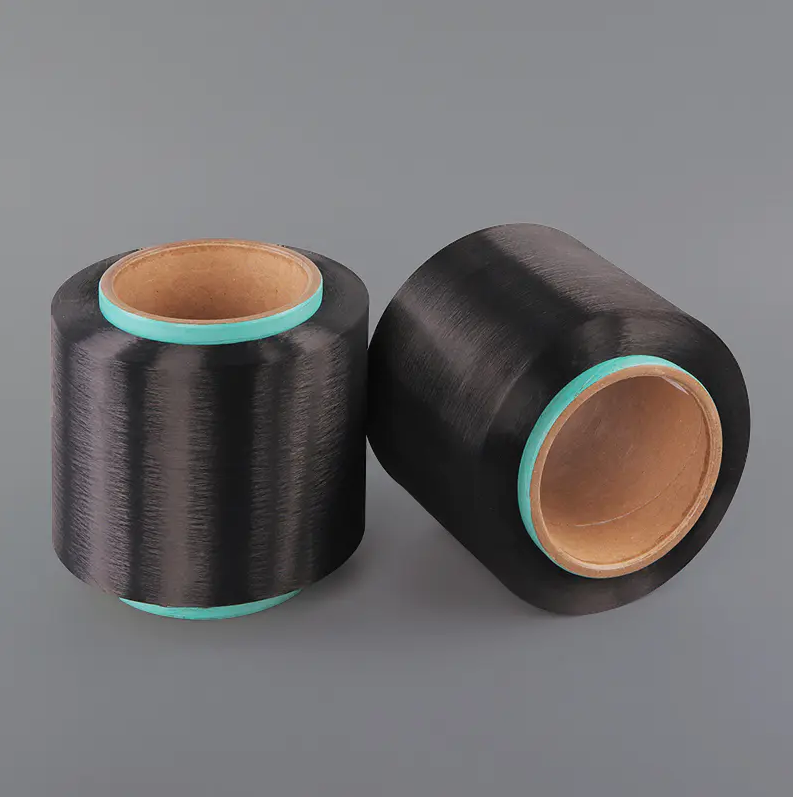

Carbon Black-Core (Bi-Component) Yarns

Carbon black-core yarns, also called bi-component or sheath-core antistatic yarns, have a structure where a carbon black-loaded polymer core is encased in a standard polymer sheath. The conductive core carries charge away while the outer sheath provides the desired textile hand-feel, dyeability, and appearance.

Structure and performance

The core typically contains 15–30% carbon black by weight of the core polymer, which is sufficient to cross the percolation threshold and deliver consistent conductivity. The resulting fiber volume resistivity usually falls between 10² and 10⁵ Ω·cm, making it one of the most electrically conductive yarn types available.

Because conductivity is built into the fiber structure rather than applied as a coating, performance is permanent and unaffected by washing or abrasion. This makes carbon black-core yarns a preferred option for long-life industrial fabrics, conveyor belts, filter media, and floor coverings in electronics manufacturing facilities.

Limitations

The main drawback is color—carbon black imparts a gray or black appearance, limiting use in light-colored or fashion-oriented textiles. The sheath partially mitigates this, but the yarn is still most commonly seen in dark-toned technical fabrics.

Metal Fiber Composite Yarns

Metal fiber composite yarns incorporate drawn metal filaments—most commonly stainless steel (316L grade) or copper alloy—either as individual strands twisted with textile fibers or as a wrapped construction. The metal content can range from as low as 1% to over 30% depending on the target conductivity level.

Construction methods

• Intimate blend: Metal fibers are cut to staple length and blended with natural or synthetic staple during carding or spinning. Produces uniform charge dissipation.


• Plied construction: One or more metal filament ends are plied together with conventional textile yarn. Simpler to produce but slightly less uniform antistatic performance.


• Wrapped (covered) yarn: A continuous metal filament is helically wrapped around a textile core yarn. Offers a good balance of conductivity, flexibility, and comfort.



Metal fiber composite yarns achieve the lowest resistivity values among all antistatic yarn types—surface resistivity can reach below 10⁴ Ω/sq—making them suitable for high-risk ESD zones such as explosive atmospheres and semiconductor fabrication areas (classified as ATEX Zone 0/1 environments).

Surface-Treated Antistatic Yarns

Surface-treated antistatic yarns are conventional textile yarns—polyester, nylon, acrylic—that receive a conductive coating or chemical finish applied to the fiber or yarn surface. Common treatment types include:

• Hygroscopic finish: Increases moisture absorption on the fiber surface, improving ion mobility and charge dissipation. Works best at relative humidity above 40%.


• Conductive polymer coating: Polythiophene, polyaniline, or PEDOT:PSS is deposited onto the yarn. Achieves surface resistivity of 10⁶–10⁸ Ω/sq.


• Metal plating (electroless): A thin layer of silver, nickel, or copper is chemically deposited onto the fiber surface, delivering high conductivity (10²–10⁴ Ω/sq) and additional electromagnetic shielding.



Durability considerations

Surface treatments are inherently less durable than structural approaches. Hygroscopic finishes typically degrade after 5–20 wash cycles, whereas electroless metal platings can survive 30–50 wash cycles if protected by a top coat. These yarns are best suited for disposable or short-life applications such as single-use packaging, temporary anti-static matting, or cost-sensitive apparel.

Comparison of the Four Main Types

How Antistatic Yarns Are Classified by Resistivity Level

Beyond yarn construction type, antistatic yarns are also categorized by their electrical performance tier, which directly maps to international standards such as EN 1149-5 and ANSI/ESD S20.20:

Specialty Antistatic Yarn Variants

Beyond the four core categories, several specialty constructions address specific needs:

Moisture-management antistatic yarns

These combine hydrophilic modification with conductive fiber blending to serve environments where both sweat management and ESD protection are needed—common in under-garments for cleanroom workers. The moisture-transport channels also assist charge dissipation in low-humidity environments where standard hygroscopic finishes underperform.

Flame-retardant (FR) antistatic yarns

These yarns combine antistatic functionality with inherent flame resistance, required for garments certified to both ESD and arc-flash or flash-fire standards (e.g., NFPA 2112 and EN 1149-5 simultaneously). The base fiber is typically an inherently FR polymer such as modacrylic, aramid, or FR viscose, into which conductive staple fibers are blended.

Nanocarbon-enhanced yarns

An emerging category that incorporates carbon nanotubes (CNTs) or graphene into the fiber polymer matrix. CNT loadings as low as 0.5–2% by weight can achieve percolation due to the extremely high aspect ratio of nanotubes. This allows near-transparent or lightly colored conductive fibers—addressing the color limitation of conventional carbon black-core yarns—though production cost remains significantly higher than traditional methods.

Key Factors When Selecting an Antistatic Yarn Type

Choosing among these types requires balancing several practical considerations:

1. Required resistivity level: Match the yarn type to the standard your end product must comply with. Exceeding requirements adds cost; falling short creates safety risk.


2. Wash durability: For reusable protective garments, only structural approaches (fiber blend, carbon core, metal composite) provide long-term reliability.


3. Aesthetic requirements: If light colors are mandatory, conductive fiber blends with non-carbon conductors or surface-treated yarns are the primary options.


4. Environmental conditions: Low-humidity environments (below 30% RH) disqualify hygroscopic treatments, which depend on moisture for conductivity.


5. Combined performance needs: FR-antistatic and moisture-management antistatic yarns solve dual requirements without requiring separate fabric layers.
